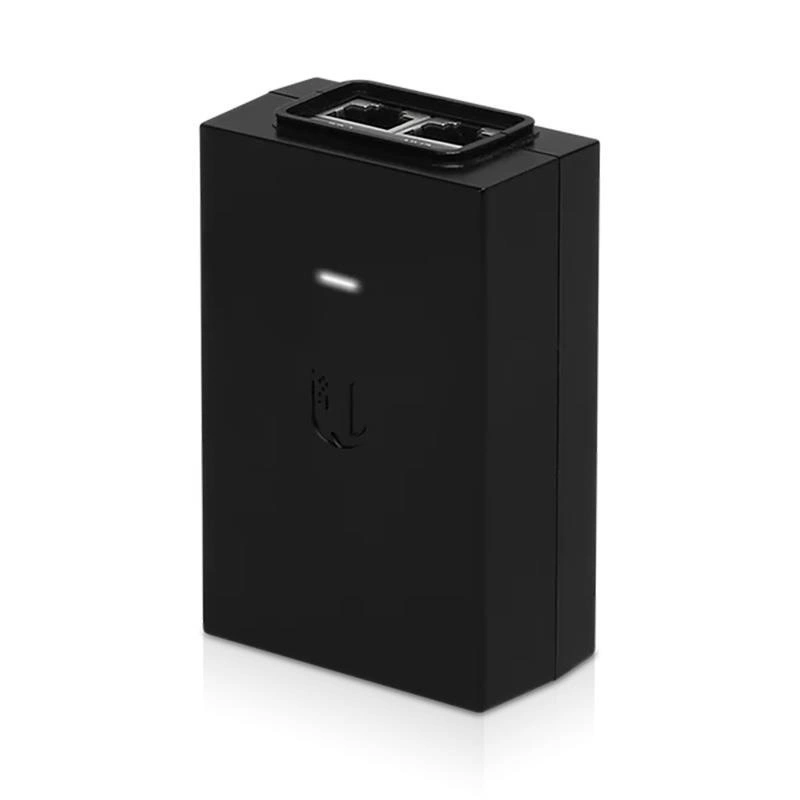

Zasilacz UBIQUITI Passive PoE 24V 1A 24W 1GbE
Dane techniczne
Marka
EAN
0810354023538
Kod producenta
POE-24-24W-G
Baza SCIP
Nie
Operating temperature
0-40° C (32-104° F)
Storage temperature
-30-70°C (-22-158° F)
Certifications
CE, FCC, IC, UL
Operating humidity
35-95% Noncondensing
Input current
0.6A @ 120VAC, 0.4A @ 240VAC
Dimensions
88 x 57 x 33 mm
Data in / poe
RJ45 Shielded Socket
Rated voltage
100-240VAC @ 50/60Hz
Output voltage
24VDC @ 1.0A
Inrush current
<60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency
80+%
Output ripple
1% Max.
Switching frequency
65 kHz
Line regulation
<=3%
Load regulation
<=5%
2-pair powering
Pins 4, 5 (+) and Pins 7, 8 (-)
Ac connector
IEC-320 C6
Surge protection
Difference and Common Mode
Clamping protection
11V Data, 60V Power
Max. surge discharge
1500A (8/20 µs) Power
Peak pulse current
36A (10/1000 µs) Data
Shunt capacitance
<5 pF data
Response time
<1 ns
Weight
158.5 g
Producent
Ubiquiti Networks Inc
